09 — Water Tank HTMX

The same multi-page tank as 08, upgraded from full-page Refresh polling to HTMX partial updates. Only the results div is swapped each second — forms, buttons, and any in-flight click are not interrupted. No App is needed; the example talks to a Controller directly.

Interactivity level: 5 — HTMX partial updates State scope: Global (server build) / Individual (WASM build)

Launch Demo Source on Codeberg

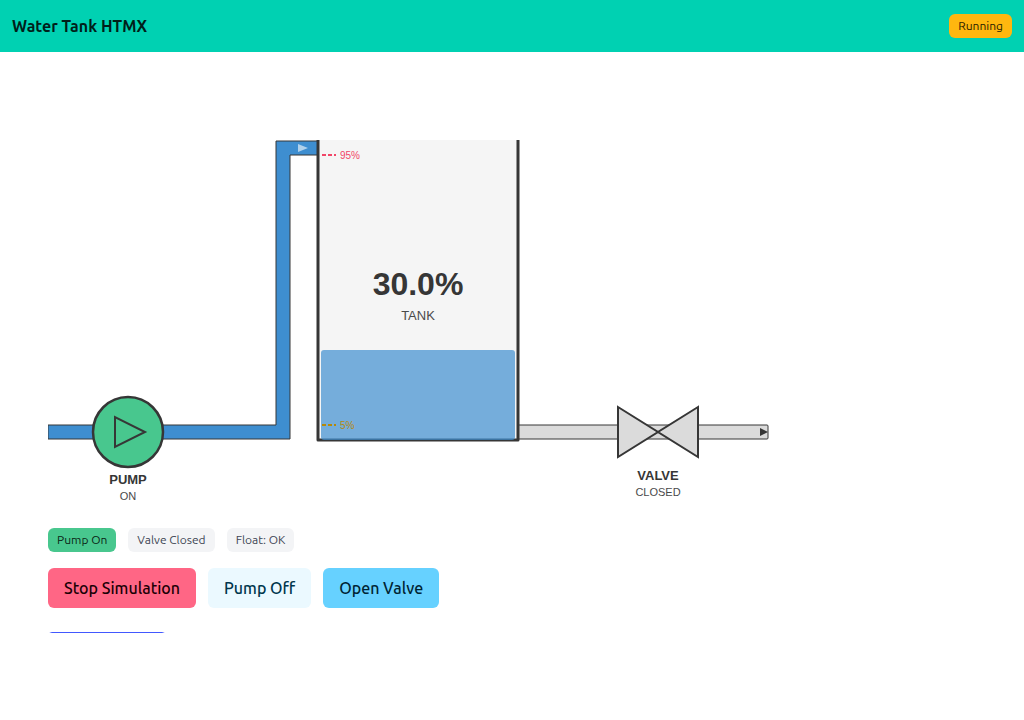

Schematic page with HTMX partial updates
/ — schematic (HTMX-polled)
→

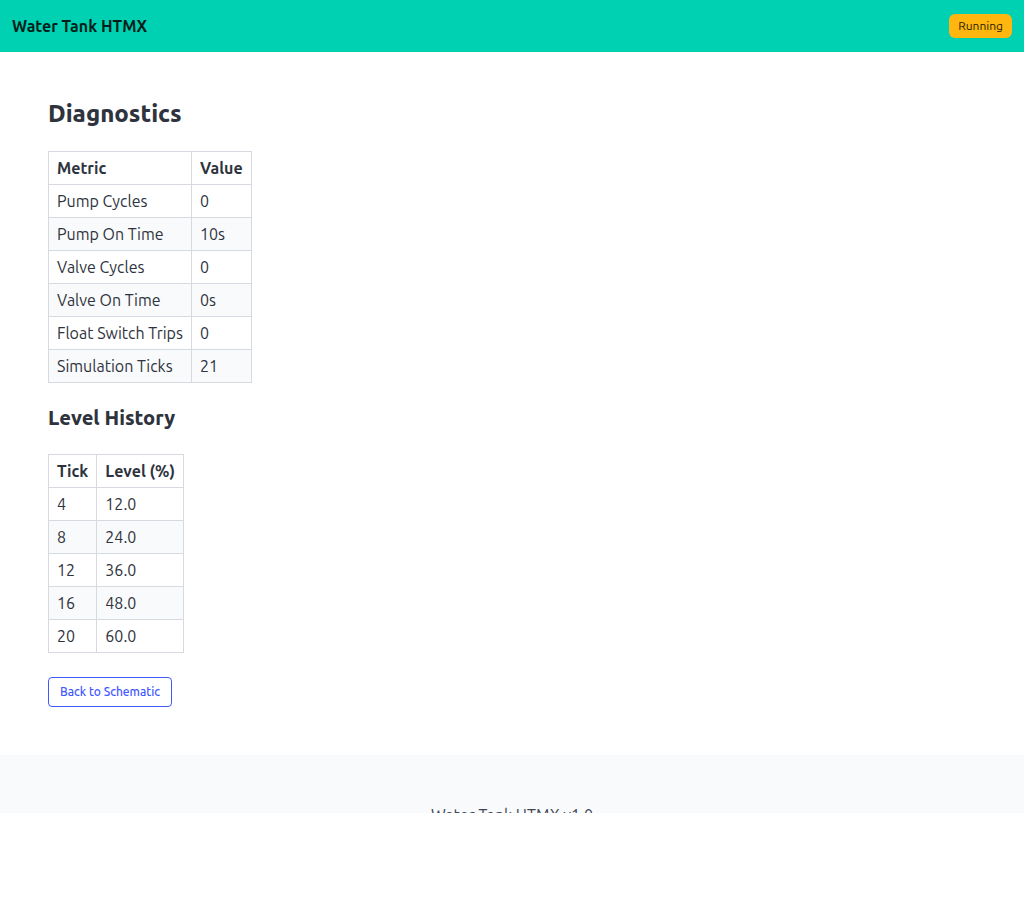

Diagnostics page with HTMX partial updates
/diagnostics — counters & history
What HTMX buys here: in 08, the whole page reloads every second — focus is lost, forms are reset, an in-flight POST may race the next refresh. In 09, only the results div is swapped via hx-get="/fragment" hx-trigger="every 1s". The page chrome (navbar, buttons, forms) is stable; the schematic updates underneath.

The page + fragment pair

Each route has two endpoints: a full page that mounts the HTMX wiring, and a fragment endpoint that returns just the inner HTML.

GET /                     → full page, hx-get="/fragment"
GET /fragment             → just the schematic HTML

GET /diagnostics          → full page, hx-get="/fragment/diagnostics"
GET /fragment/diagnostics → just the diagnostics HTML

<div id="results"
     hx-get="/fragment"
     hx-trigger="every 1s"
     hx-swap="innerHTML">
  {{.results}}
</div>

The first render fills {{.results}} from the controller; HTMX takes over from there.

Concurrency: renderAndCapture

lofigui.Print, Reset, and Buffer all touch a shared global. Multiple HTMX clients hitting /fragment concurrently would interleave their writes. A small mutex around reset+render+capture keeps each request's output isolated:

var renderMu sync.Mutex

func renderAndCapture(fn func()) string {
    renderMu.Lock(); defer renderMu.Unlock()
    lofigui.Reset()
    fn()
    return lofigui.Buffer()
}

Each fragment endpoint calls renderAndCapture(func() { renderSchematic(sim) }) and writes the captured string to the response.

Source on Codeberg

Running

task go-example:09         # server on :1349
task docs:capture:09       # capture the two screenshots above
